Hawk

Hawk

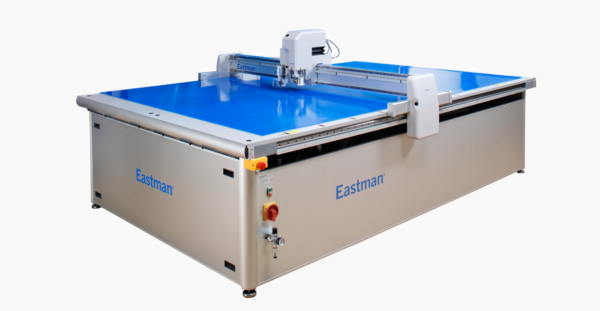

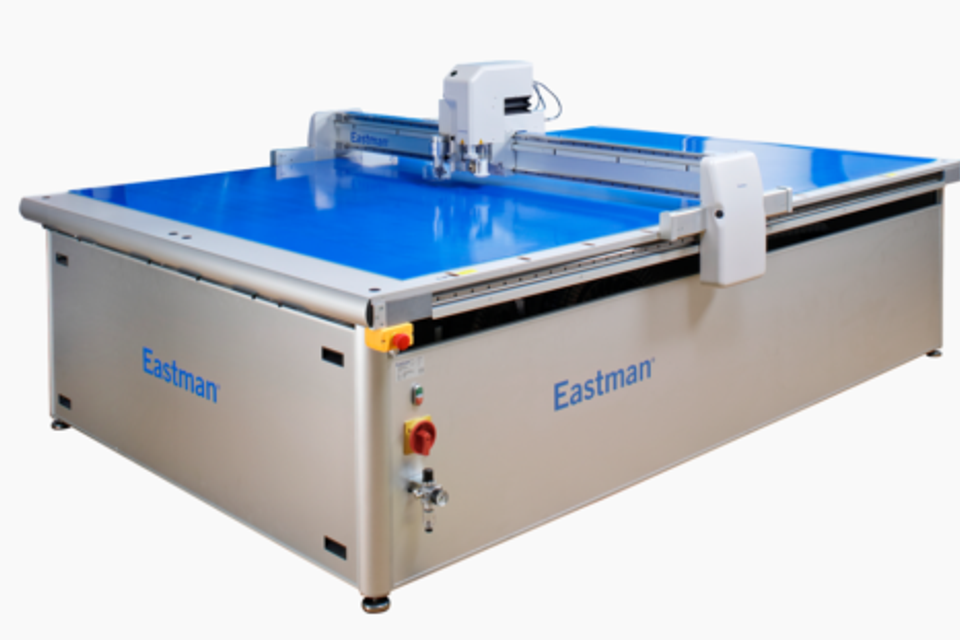

The Hawk is a high-speed, precision cutting system with a multi-functional tool head. It is a modern solution specific to professionals working in the advanced printing, packaging and graphics sector as well as industrial applications like gaskets, foam and insulation which require special cutting applications.
Request a Quote
Product Summary

Product Summary

Eastman’s Hawk offers high-speed, precision cutting, impressing with its functional design and concentration on the basic essentials:

  • Freely accessible work surface from all sides
  • Extremely robust traverse bridge with minimal protruding at the sides and rack and pinion drive system in all axis for slip-free drive.
  • Powerful AC-servo motors and modern CAN-Bus-steering technique enable high throughput

Automated > Automated Cutting
Hawk 1

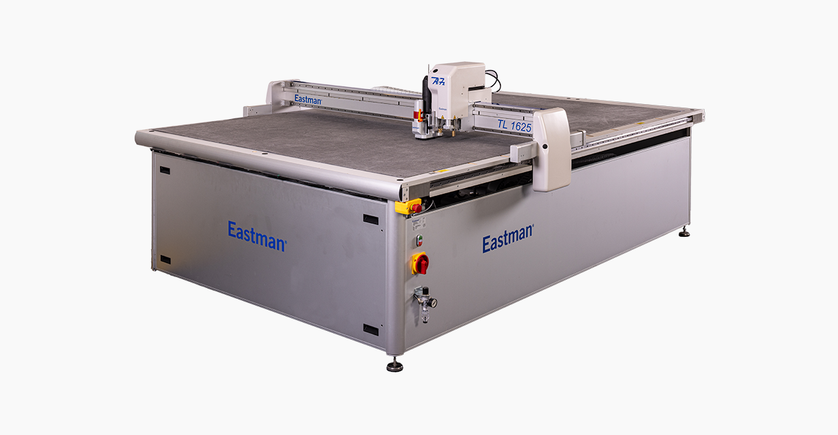

Hawk 2
Hawk 3
Hawk 4
Hawk 5
Hawk 6
Hawk 7
Previous Next

Features


Simple Operation

With the easy-to-use operable Cutter Control Panel (CCP) software, available in many languages, the Eastman Hawk cutters are controlled from the PC. The windows user interface offers the user all graphical information of the cutting data. The mobile control pad essential functions such as navigation or setting the origin allow an effective operation.

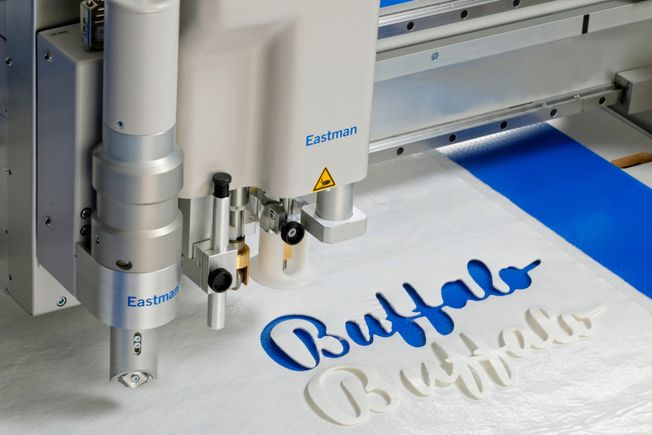

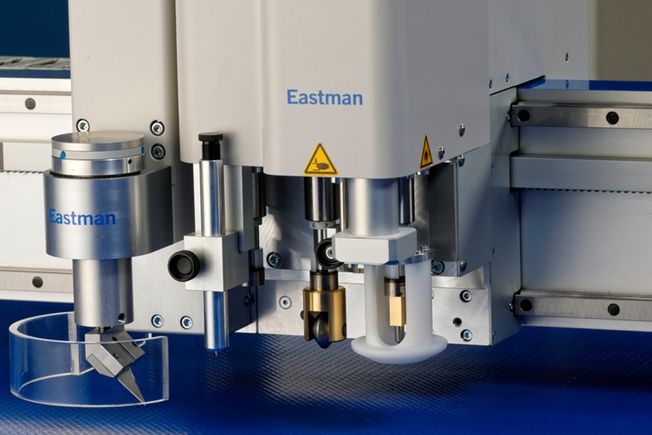

Tool Head

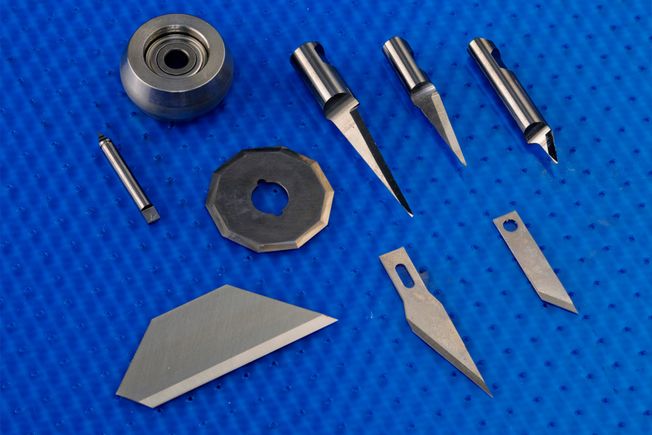

Combinable single and multi-functional tool heads with tangentially controlled tool holders and a large number of precision tools are available.

Vacuum Technique

Up to 54 controllable vacuum zones for utmost table versatility and maximum hold on even the smallest remnants.

Additional Information


System Sizes

Contact the factory for additional information.

Material clearance thickness

max. 1.8 inches depending on the tool head and protective underlay

Static repeatability

± 0.02 mm/m @ 20deg C (0.008 inch @ 68deg F)

Electric - control power / PC

200-210V, 3ph, 50/60Hz, 2.6kVA

Max. cutting speed

45 in/sec (Depending on the cutter size, cutter configuration and tool head)

Max. acceleration

1.15G (Depending on the cutter size, cutter configuration and tool head)

Electric - Vacuum Blower

208/230/380/460/575V, 50/60 Hz, 8.5 HP, VFD control

Operating temperature

+10 deg C up to +30degC (50F up to 86F)

Relative humidity

40 – 80% non-condensing

Maximum Acceleration

1.0 g
Disclaimer: Achievable speeds and accelerations are tool, material and thickness dependent. All indicated speeds, dimensions, weights and performance data are approximate and subject to change without notice.
