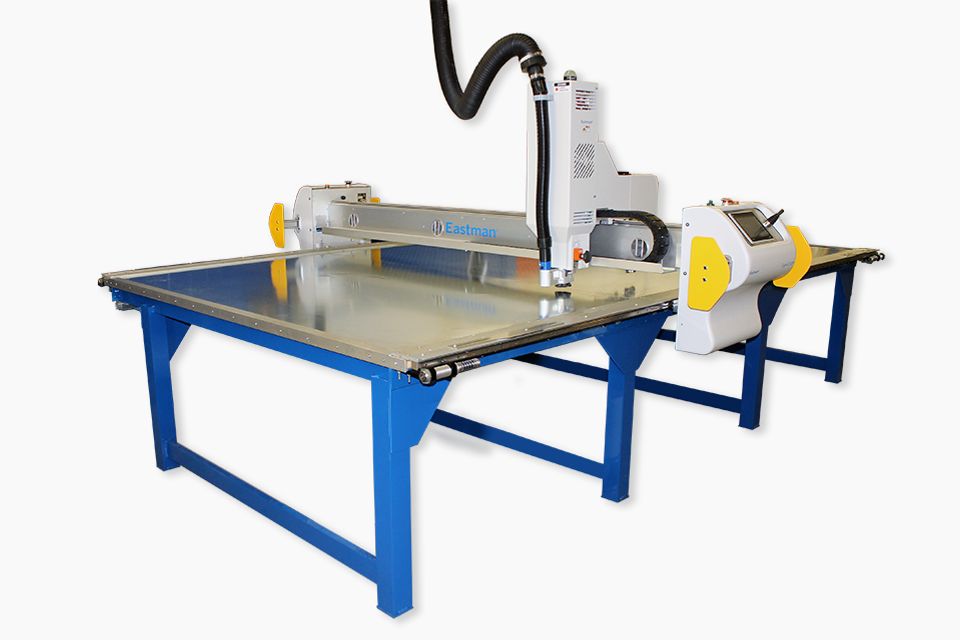

L135 laser system

L135 Laser System

Eastman’s gas assist, class 4 laser cutting machine cuts and seals material edge simultaneously with unmatched precision. The L135 mounts to the gantry of a static or conveyor table, allowing quick transition from traditional cutting to laser cutting.
Request a Quote

Product Summary

Eastman’s gas assist, class 4 laser cutting machine cuts and seals material edge simultaneously with unmatched precision. Make detailed cuts without physical contact, reducing defects from wrinkling and pulling. The L135 laser mounts to the gantry of a static or conveyor table, allowing quick transition from traditional cutting to laser cutting. Marking and labeling tools, or any other tool head options, can be added. Please contact the factory for CL135 conveyor technical specifications.

Various laser wattage configurations are available: 50, 60, 80, 100, or 120 watts. The ceramic core is durable and provides optimal laser stability while cutting, engraving, or perforating.

Available in a range of widths, lengths, and various tool head accessory options, the laser cutting table will be built to match your application needs, allowing you to customize the tools and capabilities to maximize productivity.

L135 Laser System

L135 Laser System

Features


Standard Features

  • Gas assist, class 4 laser
  • Cut and seal the material edge
  • Perforate and/or engrave material
  • Cut without physical contact, reducing defects
  • Various laser wattage configurations are available: 50, 60, 80, 100, or 120 watts

Cutting Surface

The standard cutting surface options with the laser include galvanized steel, steel honeycomb, and wire mesh. All options easily slide in place over the cutting tabletop. A supplemental table surface is supplied as a roll-down for use when cutting with traditional blades.


International Compliance Ratings

The operating computer and control cabinet are housed in an ergonomic enclosure that can be sealed to offer dust and water-resistant protection in harsh or high particulate environments. Additionally, cabling connectors, servo motors, and display components meet recognized international protection ratings requirements.


Safety

  • Gantry-mounted, laser enabled indicator light
  • Four remote emergency stops: two on cutting gantry, two system-mounted
  • Additional gantry-mounted stop disks pause system operation until returned to neutral and reset. Operation can then be resumed from any position
  • Multiple fume extraction options available to capture hazardous fumes and particulates at the source
  • Key switch activated for laser lockout/tagout, safeguards employees from unexpected start-up

Industrial Design

  • Advanced electro-pneumatic regulator for precise tool pressure control
  • Heavy-duty cable connectors
  • Easy access, sealed doors for inspection and maintenance
  • Heavy-gauge steel construction with scratch-resistant powder coated finish

Download Product PDF

PDF
Check files to be downloaded:

 L135 Laser System Brochure


Download "L135-Laser-1-4-2023.pdf"

Additional Information


Laser Type

CO2 Ceramic Core

Laser Class

Class 4

Beam Diameter

0.098 in. (2.5mm)

Beam Diameter at Cutting Surface

0.014 in. (0.343mm)

Wavelength

10.6 µm

Laser Cooling

Air

Laser Watts

50, 60, 80, 100, and 120 watt configurations

Focal Distance

2.5 in. (63.5mm)

Focus Tolerance Range

+/- 0.079 in. (+/- 2mm)

Maximum Laser Spot Height

0.80in (20.4mm)

Fume Extraction

Above table: 266 cfm, required 3 in. (76.2mm) flex hose. Below table: 266 cfm

Gas Assist

N2 recommended, CO2 acceptable

Laser Recharge

Not required

Laser Lockout

Key switch

Signal Indicator

Green: Not actively firing; system state is idle, Orange: Not actively firing; system state is gantry moving, Red: Actively firing, Red/Yellow Flashing: laser fault

Width

54 in. (1.37m) 60 in. (1.54m) 72 in. (1.82m) 78 in. (1.98 m) 96 in. (2.44 m) 108 in. (2.74 m) 114 in. (2.90 m) 126 in. (3.20 m). Please contact the factory for active cutting zone dimensions. Custom widths available, please contact the factory for more information.

Width

54 in. (1.37m) 60 in. (1.54m) 72 in. (1.82m) 78 in. (1.98 m) 96 in. (2.44 m) 108 in. (2.74 m) 114 in. (2.90 m) 126 in. (3.20 m). Please contact the factory for active cutting zone dimensions. Custom widths available, please contact the factory for more information.

Length

8 ft. (2.44m) 12 ft. (3.66m) 16 ft. (4.88m) 20 ft. (6.10m) 36 ft. (10.97m)+ Please contact the factory for active cutting zone dimensions. Custom lengths available, please contact the factory for more information.

Drive System

Dual-X Axis, Y-Axis & Theta Axis. X & Y-Axis Rack & Pinion Drive, Brushless Servo Motors

Electric - Control Power/PC

230V, 3 ph, 50/60 Hz, 5.4 kVA. Stand-alone step-down/up transformer required for other voltages.

Electric - Vacuum Blower

208/230/380/460V, 3 ph, 50/60 Hz, 7.5 HP, VFD control optional

Power: Pneumatic

75 – 90 psi at 15 SCFM (5.17 – 6.2 bars at 0.42cmm)

Maximum Laser/Plotting Speed

Material and table length dependent.

Material Thickness

Material dependent

Compressed Air Consumption

15 CFM

Sound Level

<76 db(A)

Operating Temperature

55 – 100°F (12 – 37°C)

Humidity

20 – 80% (non-condensing)

Options

2 in. (50.8mm) laser lens, brass tip laser nozzle, lens removal tool, lens cleaning tissue, 3 in. (76.2mm) dust connection hose, test burn cards, spare laser optics kit, fume extraction pre-filter, fume extraction hepa-filter, fume extraction carbon-filter

Hazardous Material

Do not cut flammable material or any material emitting toxic fumes when cut with the laser. See Material Cut/Do Not Cut list.
Disclaimer: Achievable speeds and accelerations are tool, material and thickness dependent. All indicated speeds, dimensions, weights and performance data are approximate and subject to change without notice.
