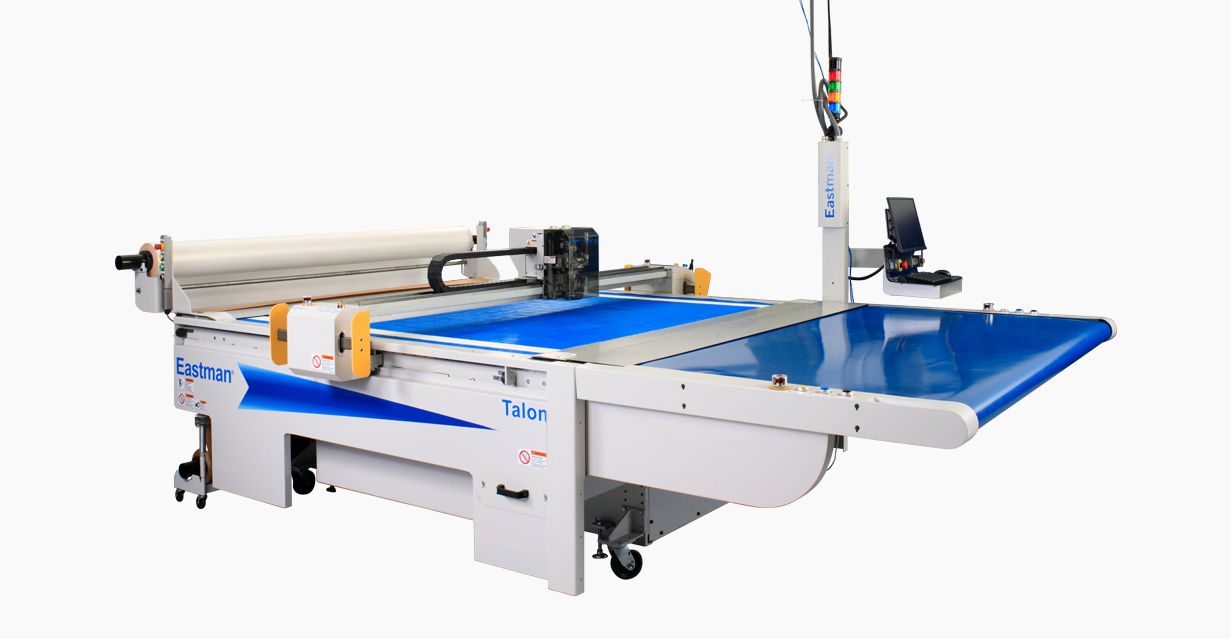

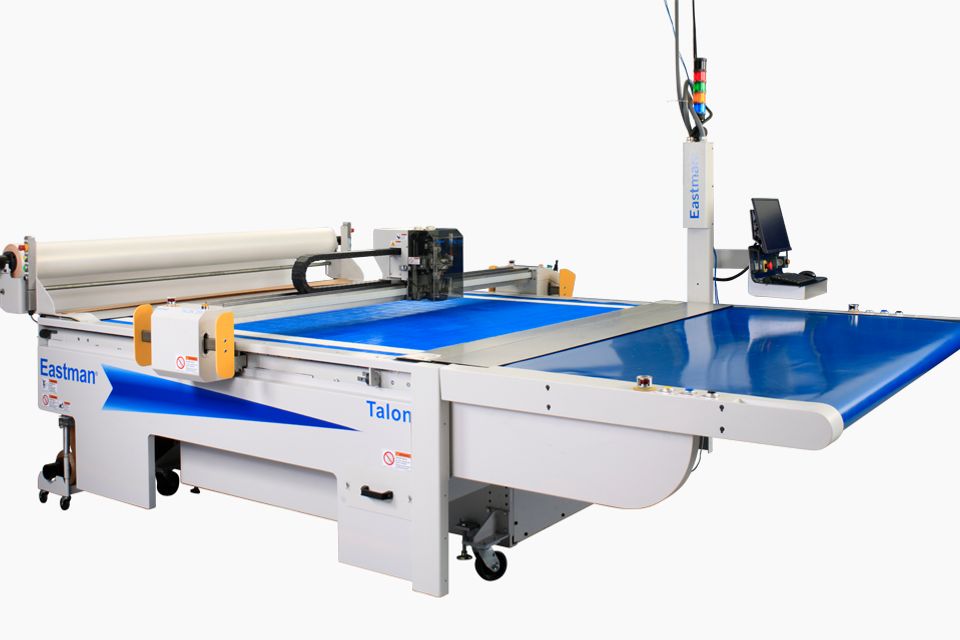

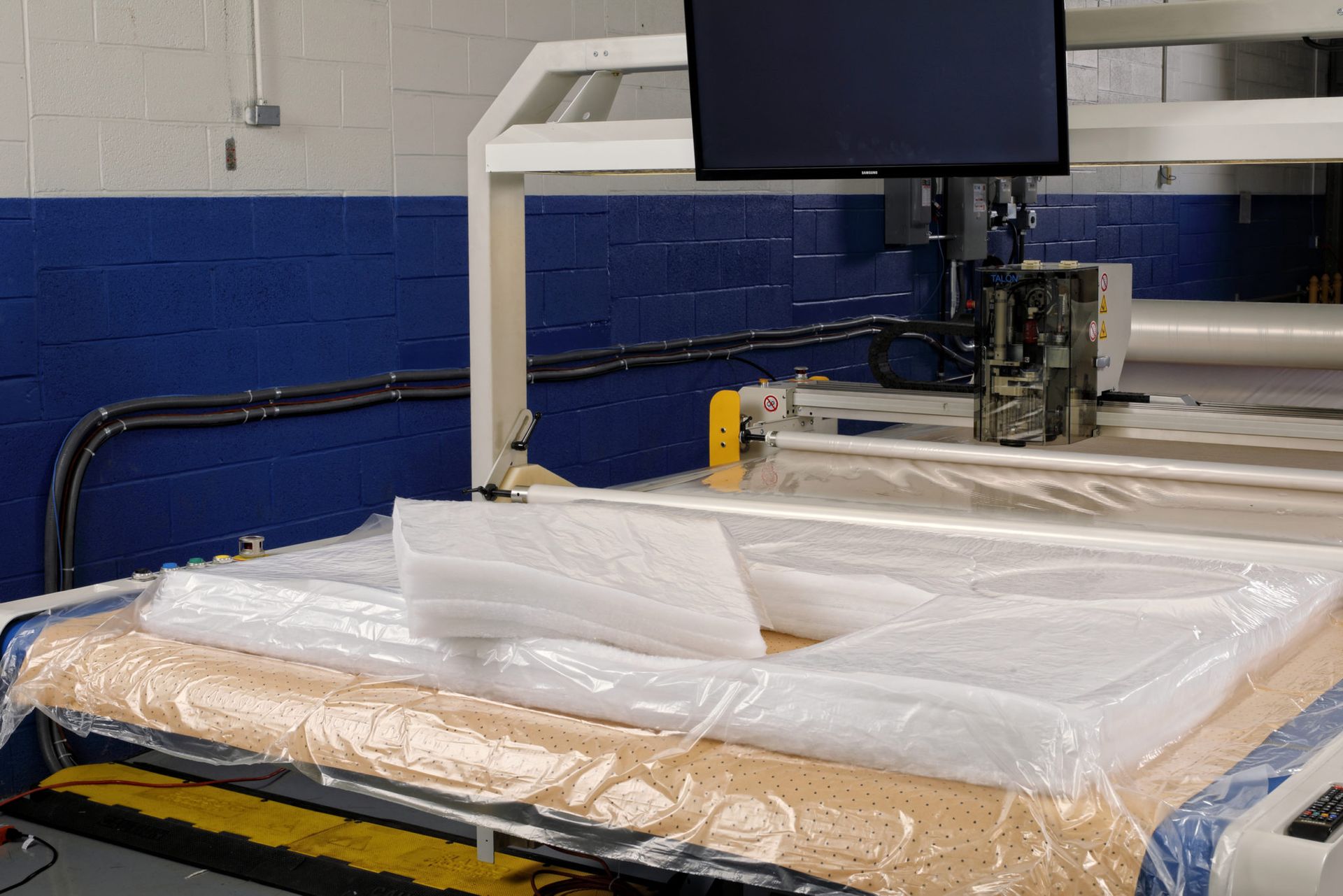

The Talon offers an industrial-strength cutting solution for high-ply production facilities with capabilities to cut up to 3 in. (7 cm) of compressed material goods.
Request a Quote
Product Summary

Product Summary

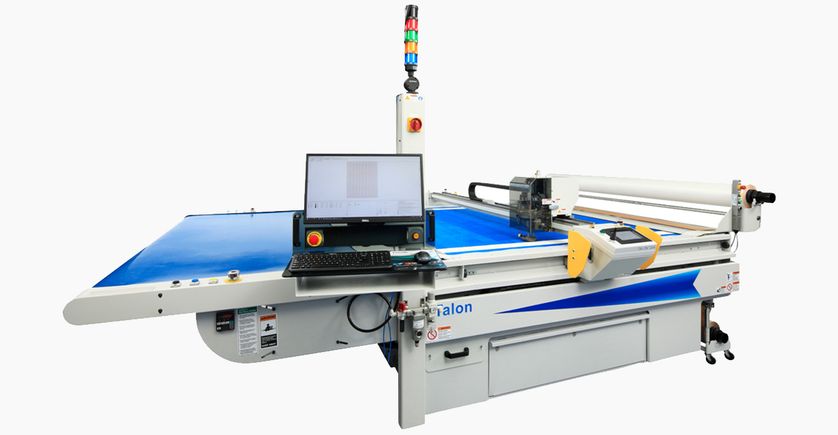

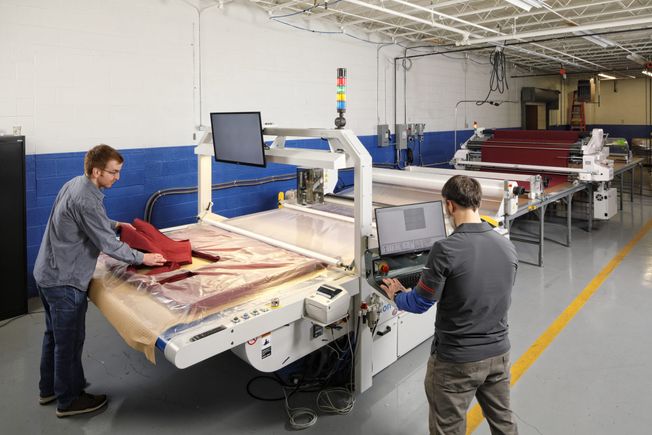

The Eastman Talon Multi-Ply is engineered and manufactured in the USA to automatically pull stacked material plies from the spreading table to a modular, bristle-block conveyor bed for reciprocating knife cutting of patterns. Precise system operations with state-of-the-art motion control communications offer an industrial-strength solution. The Talon 25 can cut up to 1.18 in. (3 cm) of compressed material goods, while the Talon 75 has the capabilities to cut up to 3 in. (7 cm) of compressed material goods.

The Talon has been engineered to meet the demands of clients in growing market segments like industrial fabrics and composites industries; customers cutting traditional -as well as- modern technical materials like kevlar, fiberglass, nonwoven polyesters, foam-backed vinyl and other industrial fabrics.

Automated > Automated Cutting
1
2
3
4
5
6
7
Previous Next

Features


Standard Features

  • Materials database
  • Power consumption reduced through intelligent vacuum controls
  • Easy to replace, the bristle blocks used in cutting area
  • Washable filters
  • Internal silencer

Tool Head

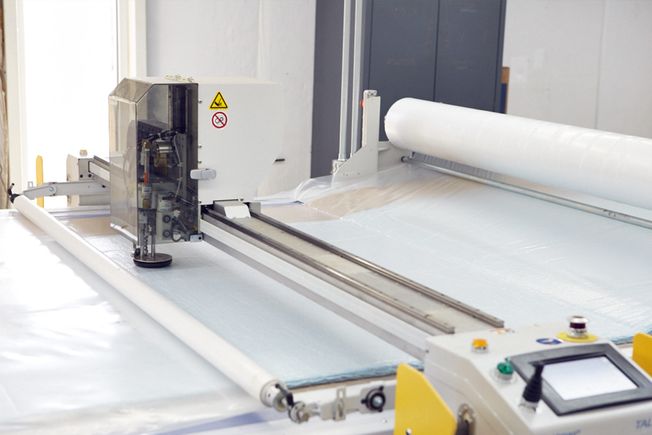

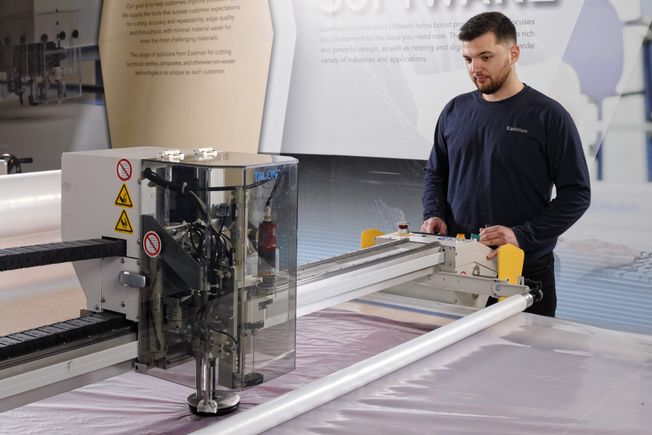

  • The Talon Tool Head, patent pending

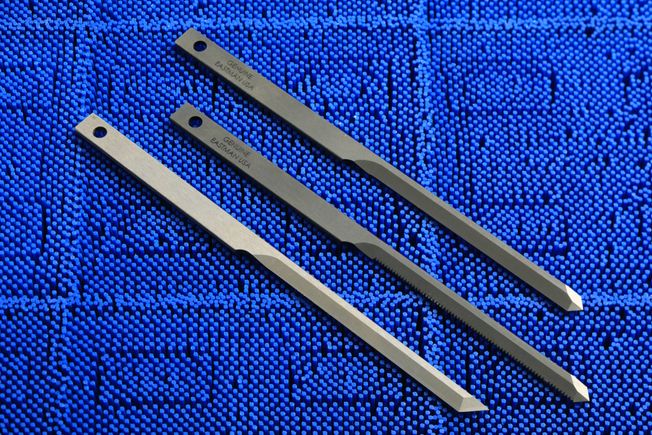

  • Quick change knife and sharpening disc
  • Reciprocating knife provides precise vertical stroke cutting
  • Intellicut knife control software ensures high-quality, precise cuts from top to bottom ply (75x only)
  • Talon 25: can cut up to 1.18 in. (3 cm) of compressed material goods
  • Talon 75: can cut up to 3 in. (7 cm) of compressed material goods
  • Single coated diamond disc provides the perfect cutting edge. Sharpener can be adjusted to user defined angle.
  • High-speed-single or dual pneumatic drills
  • Internal crank cooling system reduces heat and wear/tear
  • Easy access to knife system and assembly parts simplifies daily maintenance procedures
  • Direct drive knife system for fewer moving parts and less wear and tear
  • Blade wear monitor
  • Control of corners to minimize fusing

Safety

  • Six remote emergency stops
  • Additional gantry-mounted stop discs pause system operation until returned to neutral and reset. Operation can resume from any position.

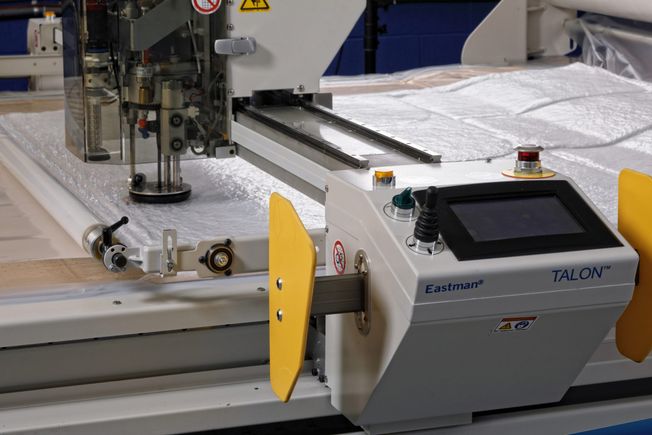

  • Tool head is equipped with a transparent safety cover
  • Single turn-off point with a universal power system for lockout/tagout safeguards employees from unexpected start-up
  • Stack light indicator marks operation status
View Flipbook

Additional Information


Cutting Area Width

Talon 25: 78 inches (2.0 m)
Talon 75: 76.6 in. (1.95 m)
Custom widths available, contact the factory for additional information.

Overall Machine Width

111 inches (2.84 m)

Cutting Area Length

5.5 ft. (1.68 m)

Overall Machine Length

13 ft. (3.96m); 4 ft. (1.22m) unloading conveyor

Drive System

Dual-X Axis, Y-Axis & Theta Axis.
X-Axis Rack & Pinion Drive, Y-Axis
Belt Drive
Brushless Servo motors

Max. Thickness of Compressed Material

Talon 25: 1.18 in. (3 cm)
Talon 75: 3.0 (7.5 cm)

Electric - Control Power

208/230/380/460/575V, 3 ph, 50/60 Hz, 9.0 kVA

Electric - Vacuum Blower

208/230/380/460/575V, 50/60 Hz, 25 HP, VFD control

Pneumatic

90 psi (6.2 bars), 18 cfm

Maximum Cutting Speed

Up to 40 in./sec (101.6 cm/second) – material dependent

Maximum Conveyor Speed

8 in./sec. (20.3cm/min)

Maximum Acceleration

1.0 g

Sound Level

<76 dB(A)

Operating Temperature

55 – 100°F (12 – 37°C)

Humidity

20-80% (non-condensing)
Disclaimer: Achievable speeds and accelerations are tool-, material- and thickness dependent. All indicated speeds, dimensions, weights and performance data are approximate and subject to change without notice.
